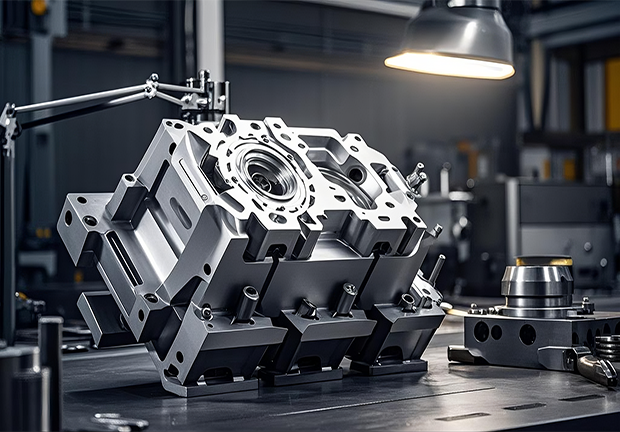

Henan Victor provides all kinds of aluminum alloy precision cast plate and rolled plate for the tooling industrial, which are widely applied in prototype mold, blow mold, foaming mold, rubber mold ,tooling fixture, gauge and jig etc.
+86-371-68509191
Typical alloy :
5083-O/H111/H112
5052 -O/H111/H112
6061-T651
6063-T651
6082-T651
7075-T651
2024-T351
Product character: High strength, Excellent machining performance.
Application
1. Used in tooling plates, equipment working tables, pharmaceuticals, machining fixtures, computer & electronics, jigs, index tables, mould cooling & heating plates, templates, industrial robot and printing machinery, medical applications, vacuum chucks, food machinery moulding plates, packaging machinery, semiconductor parts, automotive, base plates, thermo forming.
Products Advantage
The density ratio between aluminum and steel is 1:3, and therefore the weight of die can be reduced by 1/2 by using aluminum instead of steel. By using steel-aluminum composite die, the cost of die can be reduced at least 15% as compared to steel die.
In addition, the production duration of aluminum die is much shorter than that of steel die, and the processing cost of aluminum die is 35% lower than that of steel die. Therefore, the advantages of aluminum die are obvious.
Specification (can be cutting as size requirement )
| Alloy Series | Typical Alloy | Typical Temper | Thickness(MM) | Width(MM) | Length(MM) |
| 2××× | 2024 | T351 | 4-260 | 1000-3800 | 2000-38000 |
| 5××× | 5083 5052 | 0 H111 H112 | 3-260 | 1000-3800 | 2000-24000 |
| 6××× | 6061 6063 6082 | T651 | 4-260 | 1000-3800 | 2000-38000 |
| 7××× | 7075 | T651 | 4-260 | 1000-3800 | 2000-38000 |
| / | QC-10,QC-7 | / | 12-260 | 1000-3800 |
